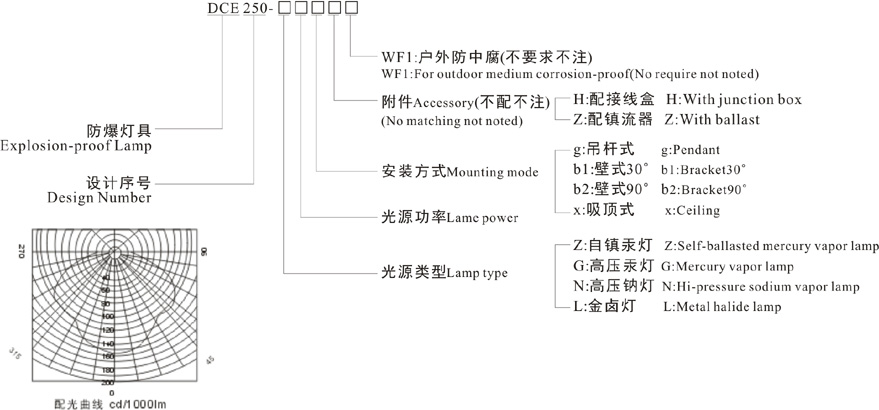

型號含義 Model implication

適用范圍  Application
1、適用于2區危險場所。
2、適用于ⅡA、ⅡB、ⅡC類爆炸性氣體環境。
3、適用于可燃性粉塵場所。
4、可配裝白熾燈、汞燈、金鹵燈。
1、Can be used in Zone2dangerous places.
2、Can be usedⅡA、ⅡB、ⅡCgroup explosive atmosphere.
3、Can be used in hammable dust atmosphere.
4、Suitable for incandescent lamp, mercury vapor lamp, high-pressure sodium vapor lamp, metal halide lamp.
產品特點  Features
1、鑄鋁合金外殼，表面噴塑。
2、結構緊湊，造型美觀。
3、采用活節螺栓緊固，能快速開啟，便于維修。
4、鋼管布線。
5、符合GB3836-2000。IEC60079標準要求。
1、Diecasted aluminium alloy shell with
2、Compact structure and acsthetic appearance.
3、Suspension type thumb nut is used for fastening so that it can be quickly opened up and is conventient for maintenance.
4、Suitable for steelpipe.
5、Suitable for GB3836-2000, IEC60079 standard request.
主要技術參數  Main technical parameters

配用光源 Supplied with lamps

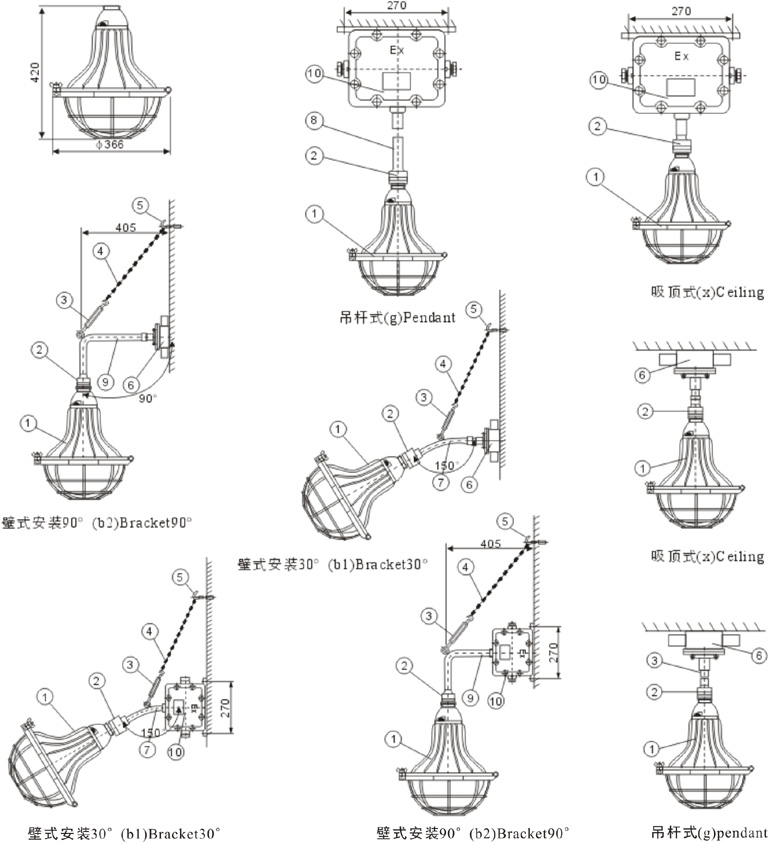

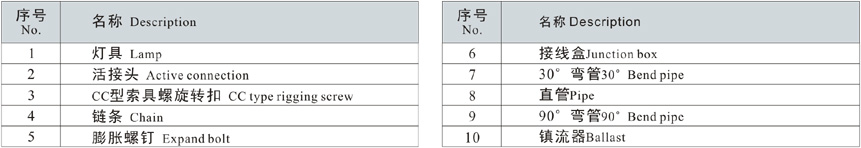

外形及安裝舉例 Outline and mounting example

注:所有燈具出廠時均不配光源，如需要請注明。
Notice:All lamps are not equipped with bulb when ex-factory, pleasse note if need.
